All photos courtesy of Charlie Campbell/KC5EZZ

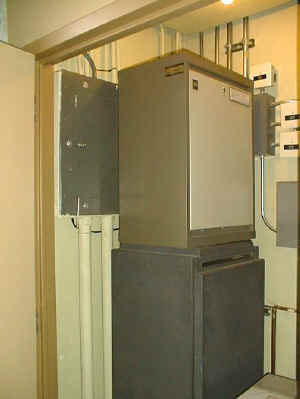

The 146.34/.94 repeater in its closet in the men's high-rise dormitory at Angelo State University.
The "old" (backup) .94 machine in is the cabinet below it.
|
W5QX/R All photos courtesy of Charlie Campbell/KC5EZZ The 146.34/.94 repeater in its closet in the men's high-rise dormitory at Angelo State University. The "old" (backup) .94 machine in is the cabinet below it. |
|

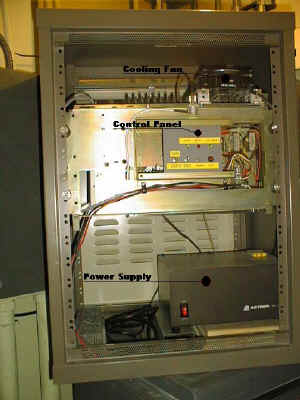

View inside the front of the repeater cabinet. |
|
View into the rear of the cabinet. |
|
The backup repeater is housed with the duplexer which serves whichever repeater is currently on the air. |
